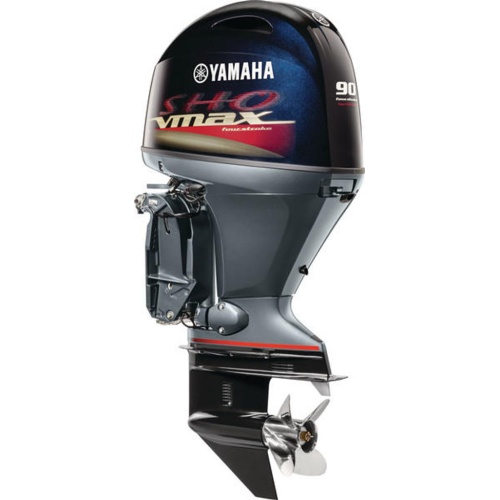

YAMAHA OUTBOARDS 90HP VMAX SHO | VF90XA

The In-Line Four V MAX SHO four strokes have achieved the unthinkable—packing signature V MAX SHO hole shot and acceleration into streamlined designs.

This powerful family now includes the all-new I-4 V MAX SHO 90, which packs the biggest punch of any 90-horse on the water. Overall, this series of 1.8- and 2.8-liter dynamos features a surprising tech package with 16 valves, single- or double-overhead cams and electronic fuel injection—for maximum efficiency and high performance.

The All-New VF90 In-Line Four V MAX SHO. A single-overhead-camshaft design with four valves per cylinder and 1.8-liter displacement make the I-4 V MAX SHO 90 a class leader in torque, top speed and efficiency. But it’s not only the fastest—it’s the quietest, too.* That makes for some pretty stealthy fishing.

• Only 353 pounds
• Powerful 35-amp alternator
• Optional Variable Trolling RPM via the Command Link tachometer or our new, helm-mounted remote VTS® Switch

SHIPPING:

$0 (Fixed Shipping Cost)

MODEL:

VF90XA

SHAFT LENGTH:

25"

WEIGHT:

362

FUEL INDUCTION SYSTEM:

EFI

CONTROLS:

Remote Mech

STARTER:

Electric

TRIM & TILT:

Power

CYLINDERS:

4

DISPLACEMENT:

1.8L

PROP SHAFT HORSEPOWER:

90hp at 5500 rpm

FULL THROTTLE RPM RANGE:

5000 - 6000

ALTERNATOR OUTPUT AT W.O.T.:

35 amp

PROPELLER:

Order Separately

RECOMMENDED FUEL:

Octane 87

RECOMMENDED ENGINE OIL:

Yamalube® 4M

RECOMMENDED FUEL FILTRATION:

Yamaha 10-Micron Fuel/Water Separating Filter

• Model: YAMAHA OUTBOARDS 90HP VMAX SHO | VF90XA
