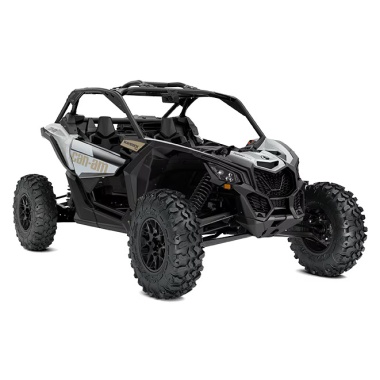

2023 MAVERICK X3 RS TURBO RR ATV

PACKAGE HIGHLIGHTS
• Smart-Lok* front differential
• FOX†
 2.5 PODIUM QS3†
 piggyback shocks
• High torque Dynamic Power Steering (DPS™)
• Belt monitoring system
• 850 W magneto
• 14 in. aluminum wheels
• 30 in. Maxxis Carnivore†
 tires
• 4.5 in. digital display with keypad
• Rear tow hook

ENGINE TURBO RR
Type 200 hp, Rotax® ACE (Advanced Combustion Efficiency)
900 cc turbocharged triple-cylinder engine, liquid-cooled
with integrated intercooler and high-perfomance air filter
Fuel Delivery System Intelligent Throttle Control (iTC™)
with Electronic Fuel Injection (EFI)
Transmission pDrive primary and Quick Response System X (QRS-X)
CVT with high airflow, L/H/N/R/P
Drive Train Lockable front differential with exclusive Smart-Lok
technology. True 4 modes traction system: 2WD/4WD
with front diff. lock/4WD TRAIL ACTIV/4WD TRAIL
Power Steering High torque Tri-Mode Dynamic Power Steering (DPS)
SUSPENSIONS
Front Suspension Double A-arm with sway bar/22 in. (55.9 cm) travel/
Trophy truck inspired arms
Front Shocks FOX 2.5 PODIUM Piggyback with QS3 compression
adjustment
Rear Suspension 4-link Torsional Trailing-arm X (TTX)
with sway bar/22 in. (55.9 cm) travel
Rear Shocks FOX 2.5 PODIUM Piggyback with QS3 compression
adjustment and bottom-out control
TIRES & WHEELS
Front/Tires Maxxis Carnivore 30 x 10/10 x 14 in.
Wheels 14 in. cast-aluminum
BRAKES
Front Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear Dual 248 mm disc brakes with hydraulic twin-piston calipers
DIMENSIONS & CAPACITIES
Estimated Dry Weight 1,673 lb (758.9 kg)
Chassis/Cage Dual-phase 980 steel
L x W x H 132 x 72.4 x 68.5 in. (335.3 x 183.9 x 174 cm)
Wheelbase 102 in. (259.1 cm)
Ground Clearance 16 in. (40.6 cm)
Rack Capacity 200 lb (91 kg) with LinQ® Quick-Attach
Storage Capacity Total: 2.5 gal (9.4 L)
Fuel Capacity 10.5 gal (40 L)
FEATURES
Gauge 4.5 in. wide digital display with keypad
Instrumentation DC outlet (10-A)
Anti-theft System RF Digitally Encoded Security System (D.E.S.S.™)
with Start/Stop button
Lighting LED headlight, LED tail lights
Winch N/A
Magneto 850 W
Protection Integrated front bumper, quarter doors
HMWPE full skid plate, rear tow hook
WARRANTY & EXTENDED SERVICE
Factory Warranty 6-month BRP limited warranty
Extended Service
Terms
B.E.S.T. term available up to 30 months
